GSA SxS Checker — Detect WFP Driver Conflicts With the Global Secure Access Client

GSA SxS Checker is a free, open-source PowerShell tool that detects Windows Filtering Platform (WFP) driver conflicts with the Microsoft Global Secure Access client — in one command, with zero dependencies. If you’ve ever seen a GSA tunnel fail with no obvious error, or you’re planning a rollout and want to pre-screen devices for known conflicts before they become incidents, this tool automates what would otherwise take hours of manual investigation.

The problem: two drivers, one set of network layers

The Microsoft Global Secure Access (GSA) client operates as a kernel-mode Windows Filtering Platform (WFP) callout driver. It sits at the FWPM_LAYER_ALE_CONNECT_REDIRECT_V4/V6 layers and intercepts outbound connections to tunnel them through your Entra-joined identity — for M365 traffic, private app access, and internet filtering.

That works perfectly in isolation — until another security or network product claims the same WFP layers. Endpoint agents from VPN vendors, SSE platforms, CASB tools, and endpoint security suites all have to hook into the network stack somewhere, and WFP callouts are a favourite spot. For several of the most common ones — Cisco, Palo Alto Networks, Zscaler, and Netskope — Microsoft has published official coexistence guides, but many others have no documented guidance at all. When two drivers compete at the same layers, the results range from subtle to catastrophic:

Tunnels silently fail to establish
Traffic gets dropped without any obvious error
Specific apps stop working while others seem fine

The hard part is that these conflicts don’t always generate a clear error. The GSA client shows a tunnel in a bad state, but the logs don’t tell you which kernel driver is competing with it. Correlating WFP callout data with running drivers is a manual, error-prone process that usually requires escalating to engineering.

The GSA client uses a kernel-mode WFP callout driver to intercept and tunnel network traffic. Other security or network access products may register WFP callouts at the same network layers, sometimes leading to conflicts.

— More Info

GSA SxS Checker automates that whole investigation into one command.

Why I built it

Debugging WFP conflict issues in the field often meant spending several hours gathering driver lists, cross-referencing vendor documentation, and then writing up findings in a format the customer could act on. The same problem came up repeatedly across different environments — and to make it harder, most endpoint admins aren’t aware that WFP callout conflicts are even a thing until a tunnel is already broken. This isn’t a GSA bug; it’s a fundamental Windows networking challenge that affects any kernel-mode callout driver sharing layers with another product.

This script collapses that investigation into under a minute and produces a report that can go straight to a change advisory board or a ticket. It’s also useful during GSA pre-deployment — run it before you roll out the client to surface conflicts proactively rather than discovering them at 2am when tunnels start failing.

The vendor signature database is the living part. If you deploy a product that isn’t covered yet, contributions are welcome via CONTRIBUTING.md.

What it produces

Run the script as Administrator and it generates a self-contained, interactive HTML report — no internet required, no server, no dependencies. The report opens automatically in your browser and is organised into six tabs:

Tab	What you see
Summary	Risk banner (None / Low / Medium / High), machine snapshot, quick conflict count
Findings	Per-vendor risk level, matched drivers/services, conflict description
WFP Details	Raw WFP callout drivers and providers (admin-only)
Kernel Drivers	All running non-Microsoft kernel drivers with publisher and signer info
System Info	Identity, OS, hardware, GSA client status, network adapter inventory
Remediation	Vendor-specific actions and diagnostic commands ready to copy-paste

Here’s a walkthrough of all six tabs — the demo machine has multiple conflicting vendors installed deliberately to show the risk scoring in action:

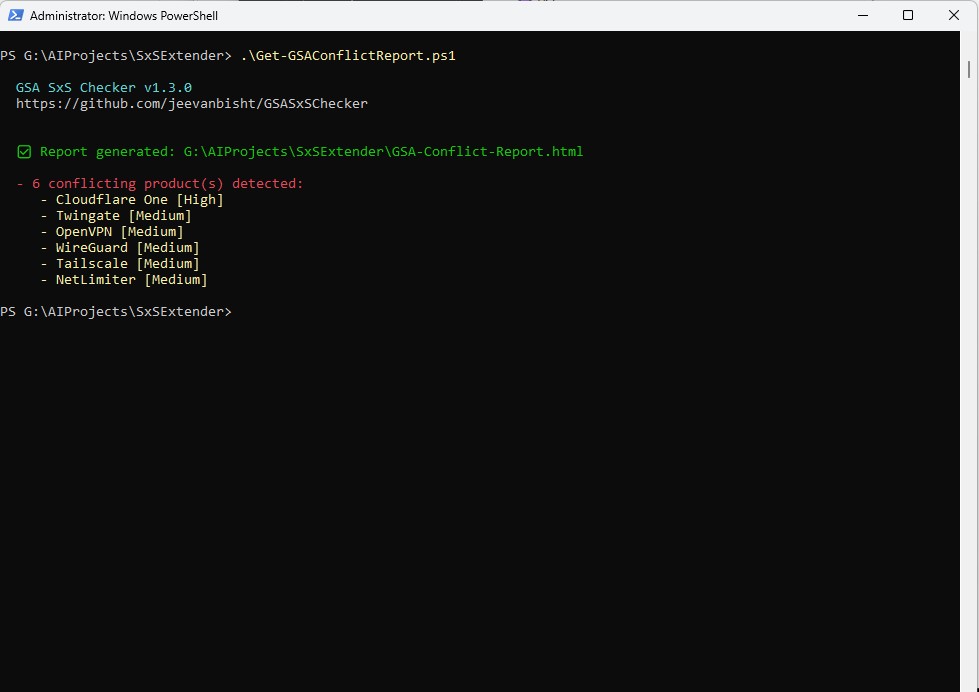

Running the script in PowerShell — conflict summary in the terminal — Running the script — conflict summary in the terminal

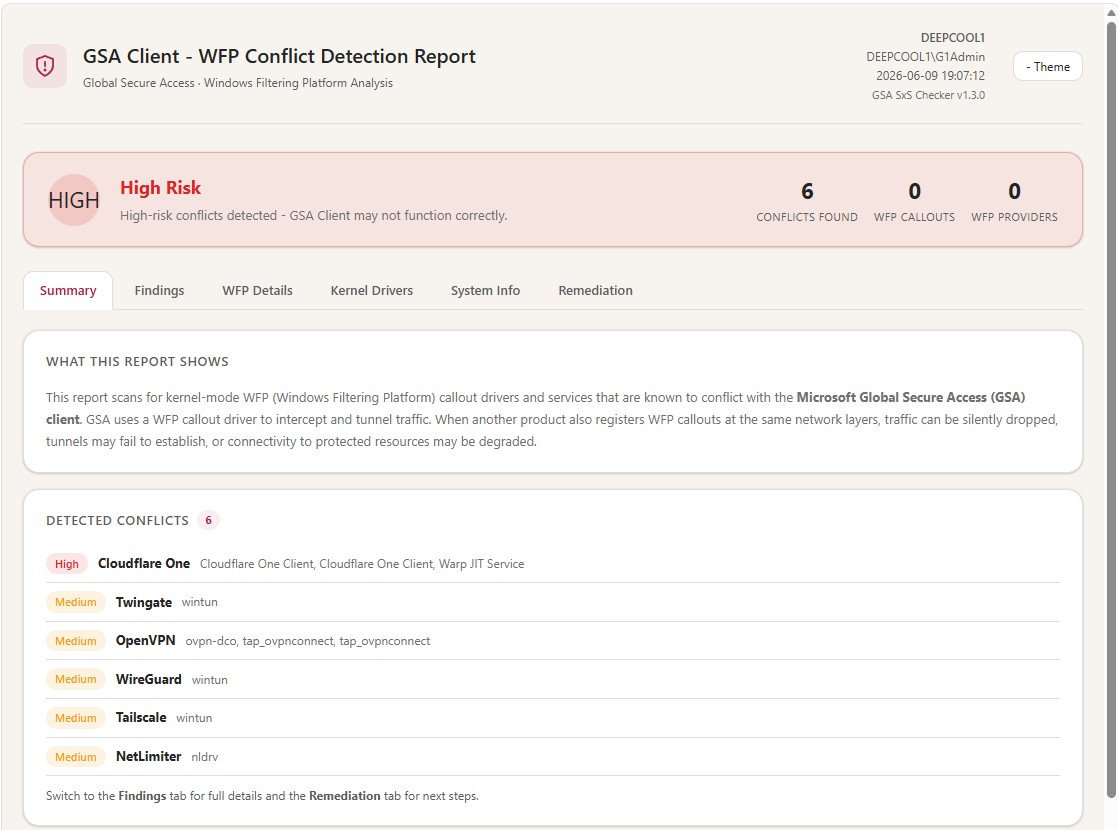

Summary tab — High Risk banner with 6 conflicts detected — Summary tab — risk banner and detected conflicts

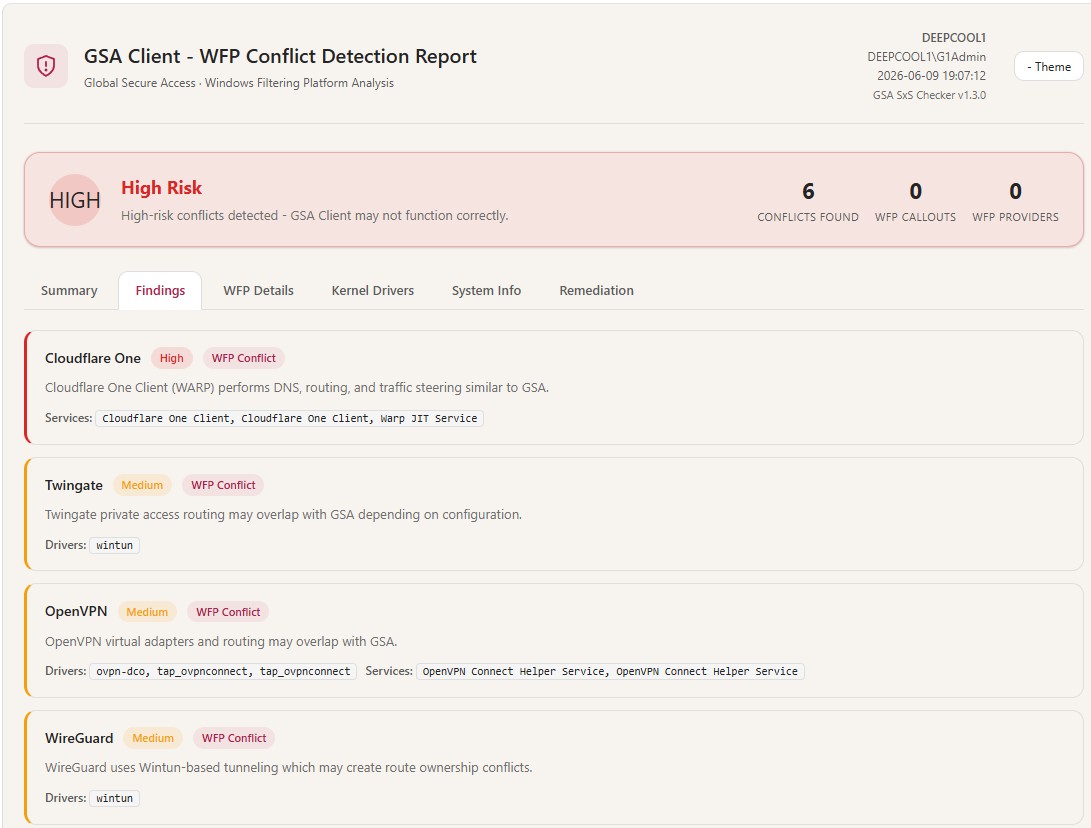

Findings tab — per-vendor conflict details — Findings tab — per-vendor risk level and matched drivers

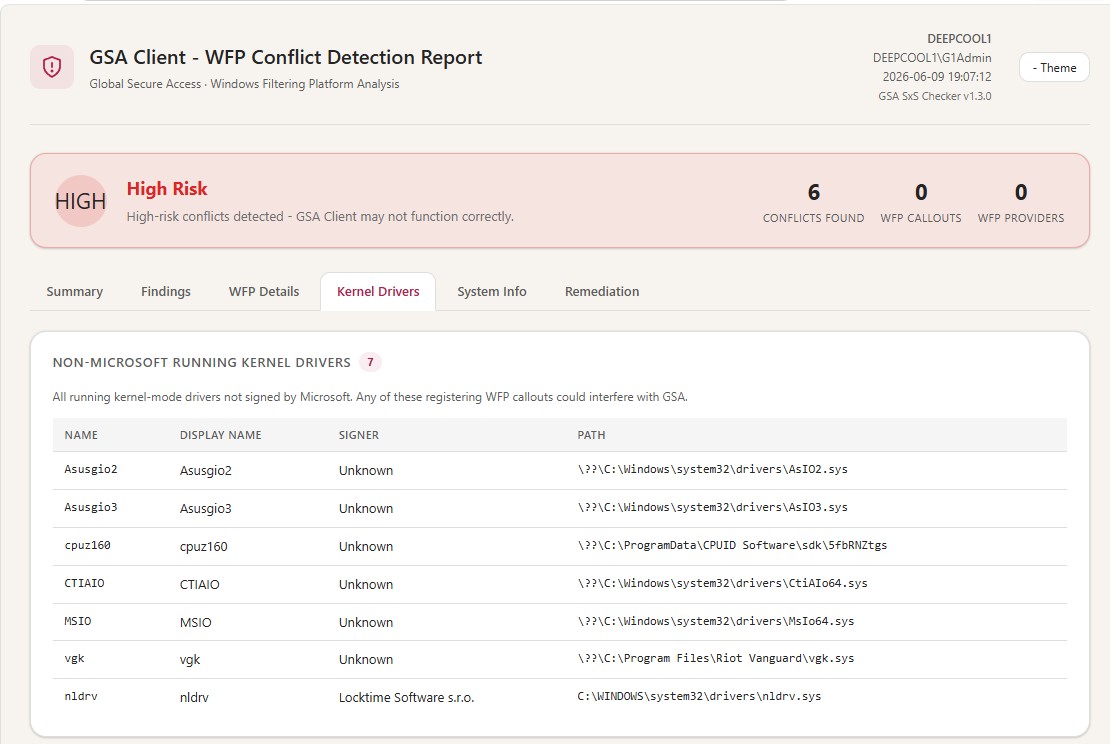

Kernel Drivers tab — non-Microsoft running drivers with signer info — Kernel Drivers tab — all non-Microsoft running drivers with signer

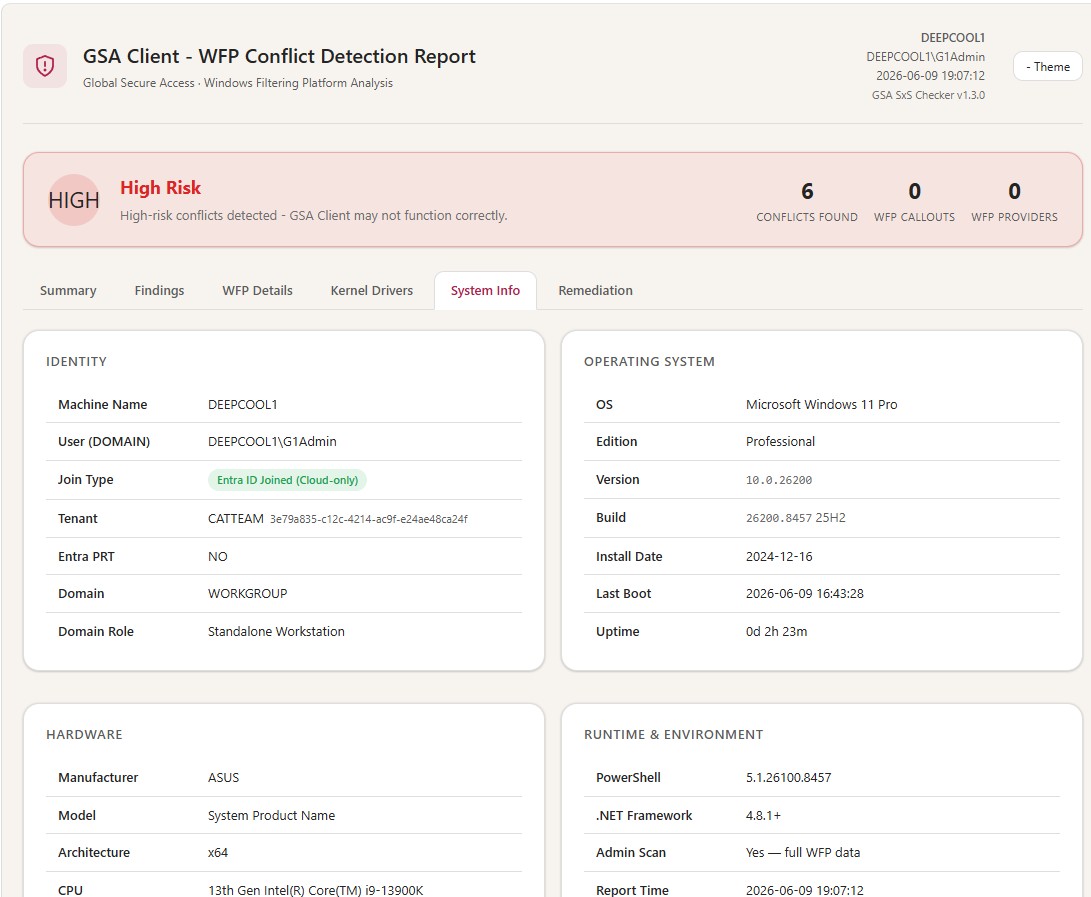

System Info tab — identity, OS, hardware and Entra join status — System Info tab — Entra join status, hardware and OS snapshot

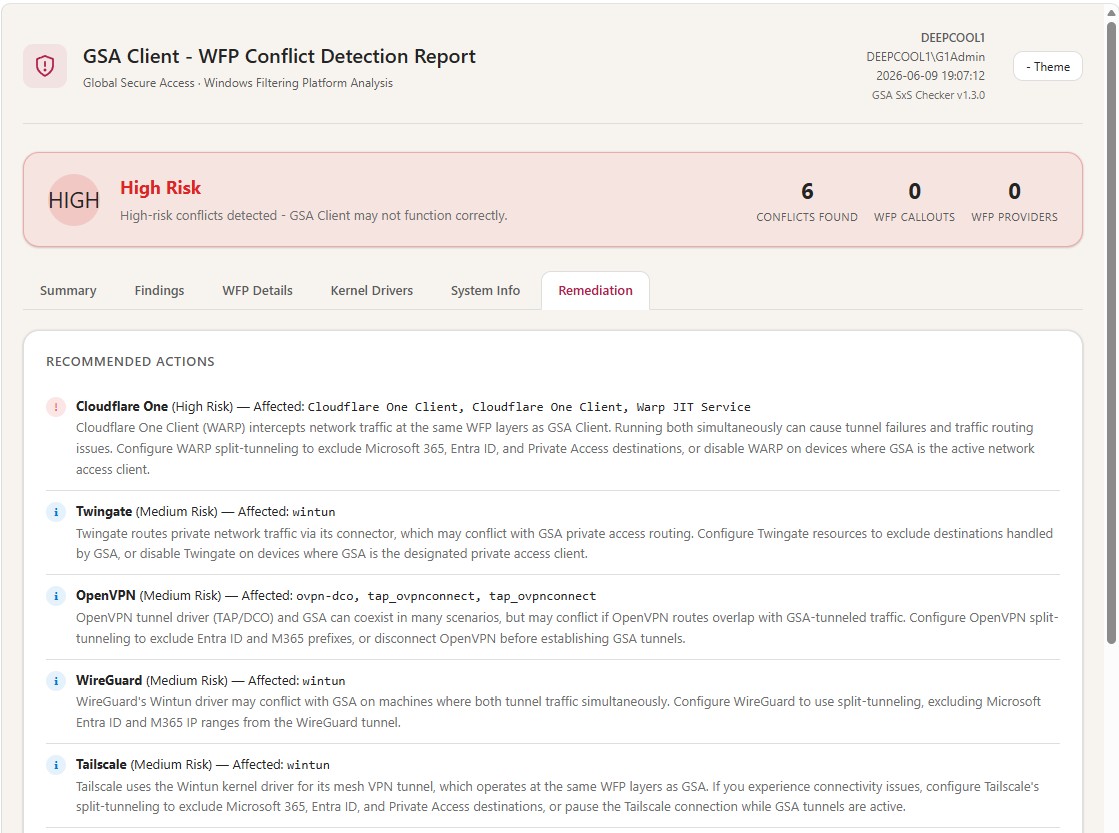

Remediation tab — vendor-specific actions and diagnostic commands — Remediation tab — vendor-specific actions ready to copy-paste

The risk banner is actionable rather than decorative — it maps what was found against known conflict severity and tells you exactly what to do next.

Quick start

# Clone the repo or just download the script directly
Invoke-WebRequest -Uri "https://raw.githubusercontent.com/jeevanbisht/GSASxSChecker/main/Get-GSAConflictReport.ps1" `
                  -OutFile "Get-GSAConflictReport.ps1"

# Run as Administrator for full WFP callout enumeration
.\Get-GSAConflictReport.ps1

The report opens automatically. For automation or custom output paths:

# Custom path — useful when collecting from a fleet
.\Get-GSAConflictReport.ps1 -OutputPath "C:\Reports\GSA-$(hostname)-$(Get-Date -f yyyyMMdd).html"

# Silent — suppress the browser pop-up
.\Get-GSAConflictReport.ps1 -NoBrowser

# Remote machine — run locally on target, then collect the HTML
Invoke-Command -ComputerName TARGET-PC -FilePath .\Get-GSAConflictReport.ps1

Requirements: Windows 10/11 or Server 2016+, PowerShell 5.1 (built in), and Administrator elevation for full results. Without elevation the report still runs — you just lose the WFP Callouts and Providers sections.

How detection works

The detection pipeline chains five data sources:

Step	Source	What it collects
1	`Win32_SystemDriver` (WMI)	All SCM-registered kernel-mode drivers
2	`netsh wfp show state`	Live WFP callout + provider enumeration (admin)
3	Vendor signature matching	32 curated vendor patterns
4	GSA registry / services	Version, channel status, service health
5	`dsregcmd /status`	Entra ID / Hybrid / On-prem join detection

Step 3 is what makes the report useful beyond raw data. The script ships with signatures for 32 vendors:

Category	Vendors covered
SSE / SASE / ZTNA	Forcepoint, Check Point, Skyhigh, Zscaler, Netskope, Cloudflare One, iboss, Appgate SDP, Akamai EAA, Twingate
VPN clients	Palo Alto Prisma / GlobalProtect, Cisco (Umbrella, Secure Access, AnyConnect, ISE, ASA, Meraki), Citrix Secure Access, Fortinet FortiClient, Ivanti / Pulse Secure, F5 BIG-IP Edge, SonicWall, OpenVPN, WireGuard, Tailscale
Endpoint security	Sophos, Absolute / NetMotion, Trellix, Symantec, CrowdStrike, SentinelOne
Other	NetLimiter

Each signature encodes the known driver/service names, the WFP callout layers the product uses, and the typical conflict behaviour — so the Findings tab can tell you why a specific product is a problem for GSA, not just that it was detected.

Scope and limitations

The tool is deliberately focused. It detects WFP callout drivers that are registered through the standard Windows Filtering Platform API and visible to the Service Control Manager. It does not detect:

Drivers loaded without SCM registration
Non-WFP hooks such as NDIS filter drivers or LSPs
Conflicts that only manifest under specific traffic conditions

That scope is intentional — it covers the vast majority of real-world GSA deployment conflicts, and keeps the script dependency-free and fast.

Official Microsoft coexistence guidance

For several of the vendors detected by this tool, Microsoft publishes dedicated coexistence guides covering configuration steps, known limitations, and recommended deployment patterns:

These are the starting point once the checker flags a conflict — they document whether the two products can run together and, if so, exactly how to configure both sides.

Source: github.com/jeevanbisht/GSASxSChecker — MIT licensed, single-file PowerShell script.
